Milwaukee’s M18 is its 18V cordless system — Milwaukee UK’s M18 page says “One system. Over 325 solutions.” Milwaukee says all M18 batteries are compatible with M18 tools, from the compact CP2.0 to the FORGE HD12.0. Below is a breakdown of popular tools by category, with the batteries we suggest for each type of work.
Browse All Milwaukee Cordless Tools on Amazon
Which Batteries Fit Milwaukee M18 Tools?
All of the following batteries are compatible with every tool listed on this page:
| Battery Model | Capacity | Type | Best For |
|---|---|---|---|
| 48-11-1815 | 1.5 Ah | CP (Compact) | Lightweight overhead work, quick tasks |
| 48-11-1820 | 2.0 Ah | CP | Everyday drilling and driving |
| 48-11-1835 | 3.0 Ah | High Output CP | Compact but high-power — impact drivers, ratchets |
| 48-11-1850 | 5.0 Ah | XC (Extended Capacity) | General professional use — good all-rounder |
| 48-11-1865 | 6.0 Ah | High Output XC | Sustained heavy-duty use — grinders, circular saws |
| 48-11-1880 | 8.0 Ah | High Output XC | Maximum runtime for demanding tools |
| 48-11-1812 | 12.0 Ah | High Output HD | All-day use on the most demanding tools |
| 48-11-1861 | 6.0 Ah | FORGE XC | Milwaukee US: 80% in 15 min on its 48-59-1815 Dual Bay Super Charger |
| 48-11-1881 | 8.0 Ah | FORGE XC | Milwaukee claims the longest life of its REDLITHIUM line; 80% in 35 min on the 48-59-1815 |
| 48-11-1813 | 12.0 Ah | FORGE HD | Maximum FORGE performance — trades-level endurance |
Genuine batteries, chargers and kits for this platform
As an Amazon Associate we earn from qualifying purchases. Genuine packs only; check the listing matches your platform before buying (affiliate links).
Before you buy: check that the size, fitting/bore and maximum-rated speed marked on the accessory match what your tool’s manual specifies. We have not physically tested these products; listings are compiled from published specifications. These are affiliate links.
Get the free Power-Tool Battery Compatibility Handbook (PDF)
Which batteries fit which tools — cross-brand, adapters & Ah, decoded.
Key rule: All M18 batteries fit all M18 tools. Higher-tier batteries (High Output, FORGE) deliver more power and runtime but are never required — any M18 battery works in any M18 tool. M18 batteries do not fit M12 tools, and vice versa.
Shop Milwaukee Batteries on Amazon
Drilling & Driving
Milwaukee’s drilling range spans from compact M18 drills to heavy-duty FUEL hammer drills. Recommended batteries: CP 2.0 Ah for light work, XC 5.0 Ah or FORGE 6.0 Ah for heavy-duty applications.
| Model | Tool | Key Spec | Tier |
|---|---|---|---|
| 2801-20 | 1/2 in. Drill/Driver | 550 in-lbs torque, compact | M18 |
| 2903-20 | FUEL 1/2 in. Drill/Driver | 1,200 in-lbs, brushless, POWERSTATE motor | FUEL |
| 2904-20 | FUEL 1/2 in. Hammer Drill | 1,400 in-lbs, 32,000 BPM | FUEL |
| 2853-20 | FUEL 1/4 in. Hex Impact Driver | 2,000 in-lbs, 4-mode DRIVE CONTROL | FUEL |
| 2962-20 | FUEL 1/2 in. Mid-Torque Impact Wrench | 550 ft-lbs fastening, friction ring | FUEL |
| 2767-20 | FUEL 1/2 in. High Torque Impact Wrench | 1,000 ft-lbs fastening, 1,400 ft-lbs breakaway | FUEL |
| 2960-20 | FUEL 3/8 in. Mid-Torque Impact Wrench | 500 ft-lbs, compact for engine bays | FUEL |
| 2713-20 | FUEL 1 in. SDS Plus Rotary Hammer | 2.1 ft-lbs impact energy | FUEL |
| 2912-20 | FUEL 1-9/16 in. SDS Max Rotary Hammer | 4.7 ft-lbs, ONE-KEY enabled | FUEL |
Saws & Cutting
Saws demand sustained high current. A 5 Ah XC or 6 Ah FORGE battery is recommended for circular saws and reciprocating saws. Jig saws and oscillating tools work well with 2–4 Ah packs.
| Model | Tool | Key Spec | Tier |
|---|---|---|---|
| 2732-20 | FUEL 7-1/4 in. Circular Saw | 5,800 RPM, brushless | FUEL |
| 2631-20 | FUEL 7-1/4 in. Sliding Mitre Saw | Dual-bevel, 10-1/2 in. crosscut | FUEL |
| 2821-20 | FUEL SAWZALL Reciprocating Saw | 1-1/4 in. stroke, 3,000 SPM | FUEL |
| 2737-20 | FUEL D-Handle Jig Saw | 3,500 SPM, brushless | FUEL |
| 2836-20 | FUEL Oscillating Multi-Tool | REDLINK PLUS intelligence | FUEL |
| 2729-20 | FUEL Deep Cut Band Saw | 5 in. x 5 in. capacity | FUEL |
| 2734-20 | FUEL 10 in. Dual Bevel Sliding Mitre Saw | 4,000 RPM, compact and portable | FUEL |
Grinding, Sanding & Finishing
| Model | Tool | Key Spec | Tier |
|---|---|---|---|
| 2880-20 | FUEL 4-1/2 / 5 in. Grinder | Slide switch, paddle switch available | FUEL |
| 2783-20 | FUEL 4-1/2 / 5 in. Braking Grinder | RAPIDSTOP brake in under 2 seconds | FUEL |
| 2648-20 | Random Orbit Sander | 12,000 OPM, dust collection | M18 |
| 2723-20 | FUEL Compact Router | 31,000 RPM, variable speed | FUEL |
| 2784-20 | FUEL 1/4 in. Die Grinder | 25,000 RPM, variable speed | FUEL |
Nailers & Fastening
| Model | Tool | Key Spec | Tier |
|---|---|---|---|
| 2746-20 | FUEL 18-Gauge Brad Nailer | 5/8 in. – 2-1/8 in., no compressor needed | FUEL |
| 2742-20 | FUEL 16-Gauge Angled Finish Nailer | 1 in. – 2-1/2 in. | FUEL |
| 2744-20 | FUEL 21° Framing Nailer | 2 in. – 3-1/2 in., full round head | FUEL |
| 2749-20 | FUEL 18-Gauge Narrow Crown Stapler | 1/4 in. crown, 1/2 in. – 1-1/2 in. | FUEL |
Outdoor Power Equipment
| Model | Tool | Key Spec | Tier |
|---|---|---|---|
| 2828-20 | FUEL String Trimmer | QUIK-LOK attachment system | FUEL |
| 2724-20 | FUEL Blower | 450 CFM, 120 MPH | FUEL |
| 2726-20 | FUEL Hedge Trimmer | 24 in. blades, 3/4 in. cut capacity | FUEL |
| 2727-20 | FUEL 16 in. Chainsaw | Oregon bar and chain | FUEL |
| 2825-20 | FUEL 21 in. Self-Propelled Mower | Dual battery, steel deck | FUEL |
Lighting, Vacuums & Jobsite
| Model | Tool | Key Spec | Tier |
|---|---|---|---|
| 2144-20 | RADIUS Compact Site Light w/ Flood Mode | 2,200 lumens (area mode), 1,000 lumens (flood mode) | M18 |
| 2145-20 | RADIUS Compact Site Light | 4,400 lumens, TRUEVIEW | M18 |
| 0880-20 | 2-Gallon Wet/Dry Vacuum | HEPA filter, compact | M18 |
| 0970-20 | PACKOUT 2.5 Gallon Wet/Dry Vacuum | Integrates with PACKOUT system | M18 |
| 2950-20 | Jobsite Radio + Charger w/ PACKOUT Compatibility | Bluetooth, AM/FM, charges M18 batteries (US model) | M18 |
Battery Recommendations by Job Type
| Job Type | Recommended Battery | Why |
|---|---|---|
| Light drilling & driving | 48-11-1820 (CP 2.0 Ah) | Compact and lightweight for overhead work |
| Impact wrenches & heavy driving | 48-11-1835 (HO CP 3.0 Ah) or FORGE 6.0 Ah | High discharge rate matches high-torque demands |
| Circular saws & demo | 48-11-1865 (HO XC 6.0 Ah) or FORGE 8.0 Ah | Sustained power draw needs capacity and high output |
| Finish nailers | 48-11-1820 (CP 2.0 Ah) | Nailers are light-draw — keep weight down |
| Outdoor power equipment | 48-11-1880 (HO XC 8.0 Ah) | Mowers and chainsaws need maximum runtime |
| All-day mixed trade use | 48-11-1812 (HO HD 12.0 Ah) or FORGE HD 12.0 Ah | Least time swapping batteries on a full shift |

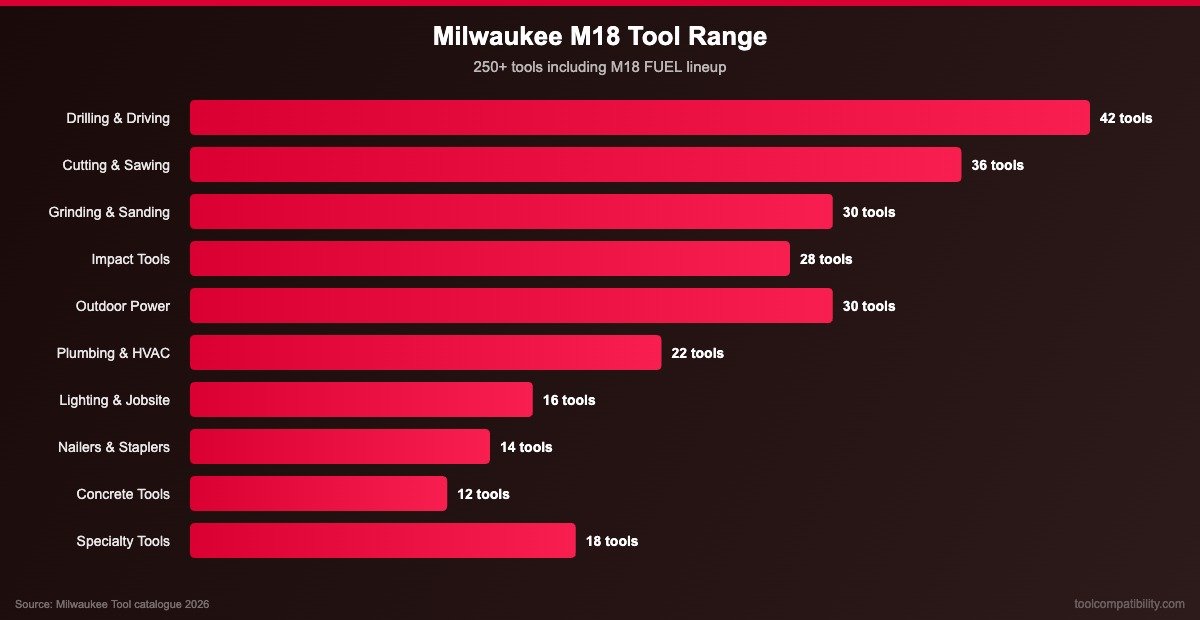

This is a representative selection of the most popular tools. Milwaukee UK describes the M18 range as over 325 solutions. Visit milwaukeetool.com for the complete current lineup.
Browse Milwaukee Batteries on Amazon
Related Guides
- Every Milwaukee M18 Battery Compared
- Milwaukee M18 Charger Compatibility Guide
- Milwaukee FORGE Battery Guide
- Milwaukee M18 vs M18 FUEL
- How Long Do Power Tool Batteries Last?
Video Guide
Frequently Asked Questions
Building Your M18 Collection
Milwaukee UK describes its M18 range as “over 325 solutions” across many trades. Building your collection strategically ensures maximum value from your battery investment.
Start with a FUEL combo kit featuring a hammer drill and impact driver — these two tools cover the majority of professional and DIY tasks. If you are starting from scratch, choose a kit version that includes batteries and a charger.
As you expand, buy bare tools (without batteries) to leverage your existing collection. Prioritise FUEL versions for tools you use daily, and consider standard M18 for tools used less frequently. How many batteries you need depends on your work and your charger; keep compact 2.0Ah packs for light tools and 5.0Ah+ packs for demanding applications.
How many Milwaukee M18 tools are available?
Milwaukee UK’s M18 page says “One system. Over 325 solutions.” Categories include drilling, fastening, cutting, grinding, lighting, plumbing, electrical, HVAC, concrete, and outdoor power equipment.
What is the difference between M18 and M18 FUEL tools?
Milwaukee uses the FUEL name for its premium M18 tools; on its product pages it describes FUEL as combining a POWERSTATE brushless motor, REDLITHIUM battery packs and REDLINK PLUS Intelligence. Non-FUEL M18 tools are the standard range. We have no maker figures comparing price, performance or motor life across the two, so compare the specs of the specific tools you are considering.
Which M18 battery should I start with?
The 48-11-1850 (5.0Ah) is the best all-around starter battery. For compact tools, the 48-11-1820 (2.0Ah) keeps things light. For high-demand FUEL tools, the 48-11-1865 (6.0Ah HIGH OUTPUT XC6.0) is recommended to unlock maximum performance.
How we compile this guide
We cross-reference compatibility details against manufacturer specifications where available, official tool manuals, and the physical standards that govern fitment (bore sizes, arbor diameters, voltage platforms, connector types). We prioritise primary sources over retailer listings, flag anything we can’t confirm, and re-verify the data on a regular cycle. Where we give a buying recommendation, we tell you the reasoning — not just the link. More on our method →
